• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31080

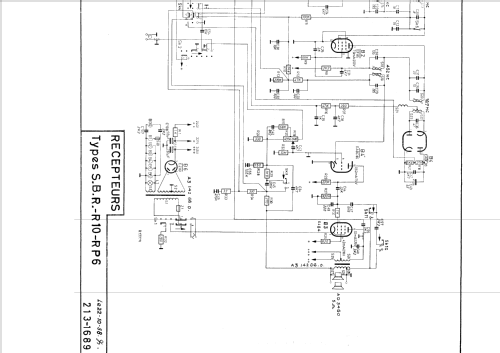

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

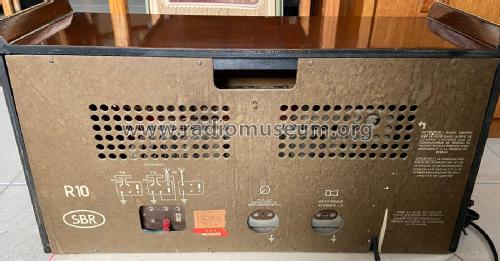

• Model: R10 - SBR Société Belge Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 300 x 210 mm / 21.7 x 11.8 x 8.3 inch

• Notes

• The R10 chassis is also used in model RP6.

• Price in first year of sale
• 3,950.00 FB

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bruno Brasseur. See "Data change" for further contributors.
