• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DK96 DF96 DAF96 DL96 DM70

• Main principle
• Superheterodyne (common); ZF/IF 457 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 130; 220 / ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

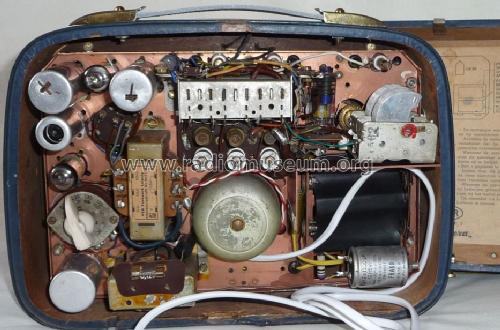

• Model: Riviera P7 - SBR Société Belge Radio-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 305 x 220 x 125 mm / 12 x 8.7 x 4.9 inch

• Net weight (2.2 lb = 1 kg)
• 3.650 kg / 8 lb 0.6 oz (8.04 lb)

• Author
• Model page created by Dietrich Ehrhold. See "Data change" for further contributors.
