• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 235527

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC83 ECC83 ECC83 ECC83 ECC83 EL86 EL86 EL86 EL86

• Number of Transistors
• 2

• Semiconductors
• BC107 BC107

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• from Radiomuseum.org

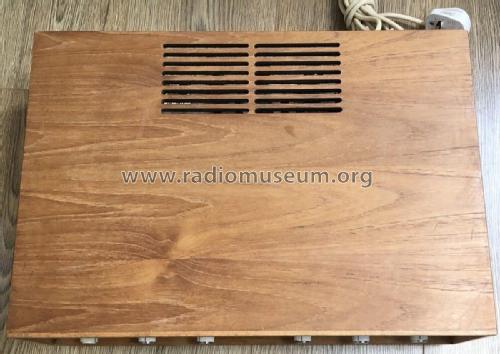

• Model: S210 - SBR Société Belge Radio-

• Shape
• Tablemodel, with any shape - general.

• Notes

• Transformerless amplifier for 800 Ω speakers.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
