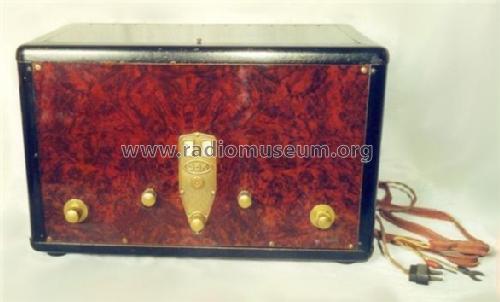

Super Ondolina Réseau S.O.R. batteries

SBR Société Belge Radio-Electrique, Bruxelles

Data
Forum
Pictures
Collections

  • Year
  • 1929
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 228475

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 4 & 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Super Ondolina Réseau S.O.R. [batteries] - SBR Société Belge Radio-
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
    • There are 2 generations from this radio:
      • On the 1st generation, there is a wooden upper frame with a lid and a wooden under frame. Between them, there are 4 vertically mounted metallic supports which carry also the wall panels.
      • On the 2nd generation, the support frame is completely metallic and in one piece.
    • The radio was delivered with a loop antenna, type unknown at this date.
    • The AC model 110-130 and the AC model 190-220 types have an internal power supply. Both models employ the fuse on the power transformer to select the proper mains voltage.
    • The Batteries type has only connectors for the batteries but it can also be used with a M35 power supply in which case Réseau1 tubes had to be used.

    1 Réseau tubes: from the French word "Réseau" = (power) grid. Tubes that can be heated with AC current in contrast with battery tubes that are heated with DC current.

  • Price in first year of sale
  • 5,960.00 BFr
  • Author
  • Model page created by Dirk Bladt. See "Data change" for further contributors.
