Transistor Ch= L3XZ91T /02S
SBR Société Belge Radio-Electrique, Bruxelles
- Country
- Belgium
- Manufacturer / Brand
- SBR Société Belge Radio-Electrique, Bruxelles
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250392

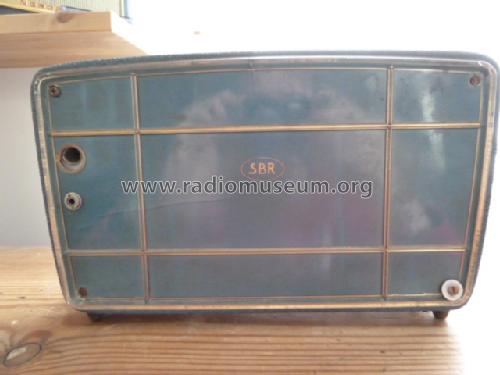

Courtesy by Walter Wielockx (B)
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Transistor Ch= L3XZ91T /02S - SBR Société Belge Radio-
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
The printed circuit is provided with a label with the designation L3XZ91T /02S (obviously a Philips designation). A SBR name/type for this model is not yet known.
- Author
- Model page created by Nick Warmoeskerken. See "Data change" for further contributors.
