• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 354083

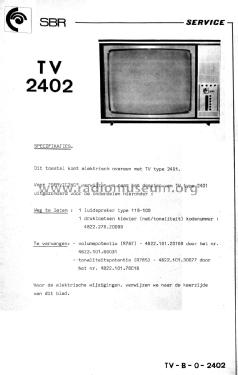

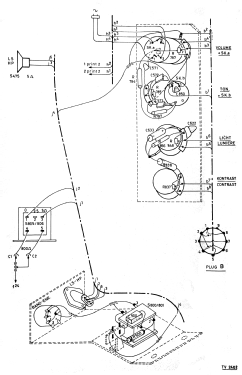

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PCF201 PCF200 PCL86 PL84 PFL200 PCF802 PCF80 PCF200 PCH200 PCL85 PL504 PY88 DY87 unknown_CRT

• Number of Transistors
• 14

• Semiconductors
• AF139 AF139 AF239 BF173 BF195 BF194 AF121 AF121 AF121 AC126 AF126 AC127 AC125 AC125 OA47 BA100 AA119 OA91 OA90 AA119 AA119 BA100 OA90 OA85 OA81 OA81 OA90 OA81 BA100 BA100 BA100

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

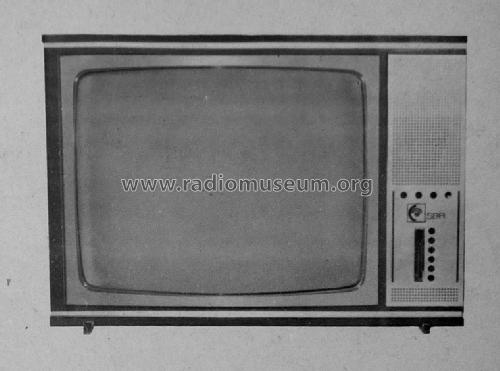

• Model: TV-2402 - SBR Société Belge Radio-

• Shape
• Tablemodel, low profile (big size).

• Notes

• See also model SBR TV-2401.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
