- Country
- Germany
- Manufacturer / Brand
- Schaleco - Schackow, Leder und Co; Berlin
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6323

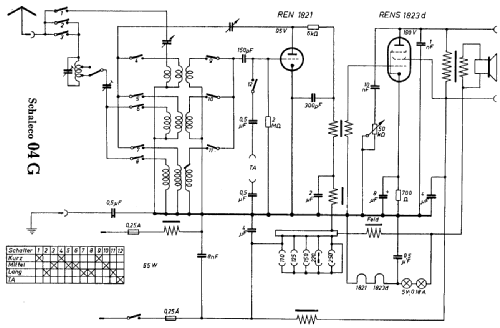

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Direct Current supply (DC) / 110-250 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 04/G - Schaleco - Schackow, Leder und
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
