Aufsteckdetektor
Schaleco - Schackow, Leder und Co; Berlin
- Country
- Germany
- Manufacturer / Brand
- Schaleco - Schackow, Leder und Co; Berlin
- Year
- 1924
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 223782
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Crystal or Solid State Detector
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Aufsteckdetektor - Schaleco - Schackow, Leder und
- Notes
- Kristallhalter mit angespitztem Blechstreifen als Kontakt, exentrische Verstellungen.
- Mentioned in

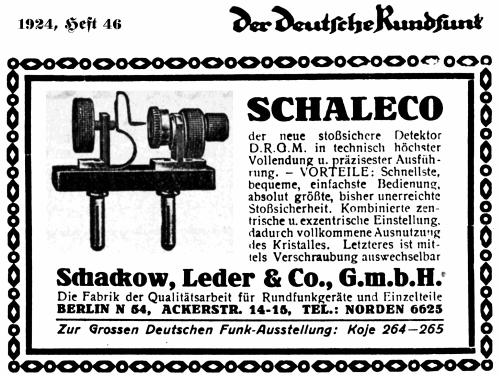

- "Der Deutsche Rundfunk" 1924, H.46
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
