Universal BU4MG
Schaleco - Schackow, Leder und Co; Berlin
- Country
- Germany
- Manufacturer / Brand
- Schaleco - Schackow, Leder und Co; Berlin
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6351
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Direct Current supply (DC) / 110-300 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Universal BU4MG - Schaleco - Schackow, Leder und
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 375 x 440 x 240 mm / 14.8 x 17.3 x 9.4 inch
- Notes
-
Preis ohne Röhren, zusätzlich Röhrensatz: 68,- RM
- Price in first year of sale
- 225.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Picture reference

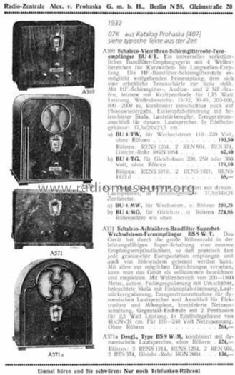

- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
