Model 41 ECH35 With Wooden Case
Ernsmiths (Scharnberg Strauss); Adelaide
- Country
- Australia
- Manufacturer / Brand
- Ernsmiths (Scharnberg Strauss); Adelaide
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 270968

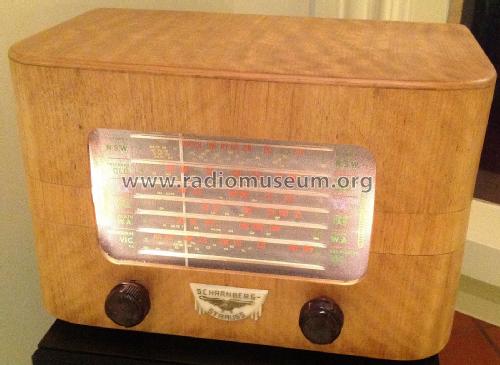

Picture courtesy of guest Anthony Denton
Picture courtesy of guest Anthony Denton
Picture courtesy of guest Anthony Denton
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Model 41 ECH35 [With Wooden Case] - Ernsmiths Scharnberg Strauss;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
This is an unusual model 41 with a wooden case.
The usual Model 41 with Bakelite case
A later Model 41 exists with the following valves: 6AN7 6SF7 6M5 5Y3GT
- External source of data
- Information courtest of guest Anthony Denton
