Amigo HK 121041
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25460
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / AC 110; 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

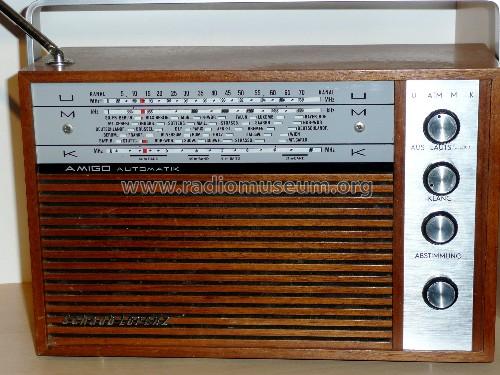

- Model: Amigo HK 121041 - Schaub und Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 272 x 190 x 102 mm / 10.7 x 7.5 x 4 inch
- Notes
- Skala etwas weniger breit als bei Amigo SK, Bedienknöpfe in separatem Bereich angeordnet (von Skala getrennt). Es gibt noch den Amigo HK 12101475, bei Netzbetrieb NF-Ausgangsleistung = 2 W. Wellenbereiche: UKW (FM) 88 - 108 MHz, MW 510 - 1640 kHz, KW 4 - 10 MHz.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
