Baden 36W Bakelit
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6141

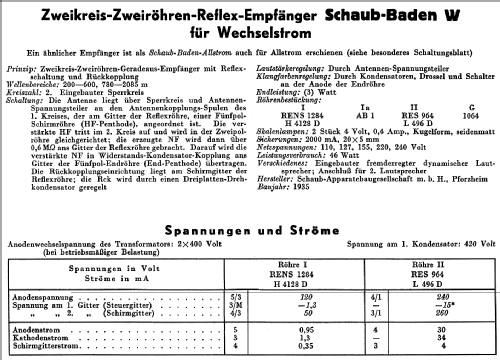

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Baden 36W [Bakelit] - Schaub und Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 470 x 310 x 240 mm / 18.5 x 12.2 x 9.4 inch
- Notes
- Konstante Rückkopplung. Siehe auch Variante mit Holzgehäuse.
- Price in first year of sale
- 217.00 RM
- Source of data
- -- Collector info (Sammler) / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
