Baden 40W
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6112
D-Schaub-Baden_40W_Frontansicht
D-Schaub-Baden_40W_Frontansicht_schräg
D-Schaub-Baden_40W_Rückansicht
D-Schaub-Baden_40W_Innenansicht
Baden40
Baden40_innen
Baden40_RW
Schaub Prospekt 1939/40

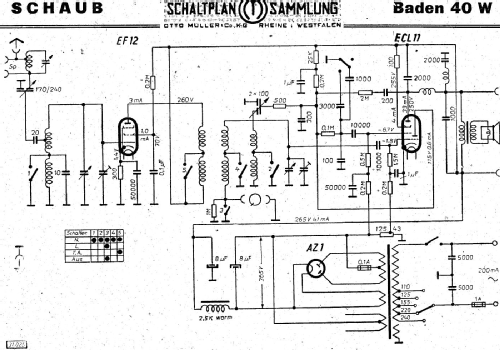

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Baden 40W - Schaub und Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 310 x 270 mm / 22 x 12.2 x 10.6 inch
- Notes
- 9-kHz-Sperre
- Net weight (2.2 lb = 1 kg)
- 11.2 kg / 24 lb 10.7 oz (24.67 lb)
- Price in first year of sale
- 150.00 RM
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
