• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74499

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 10700/460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

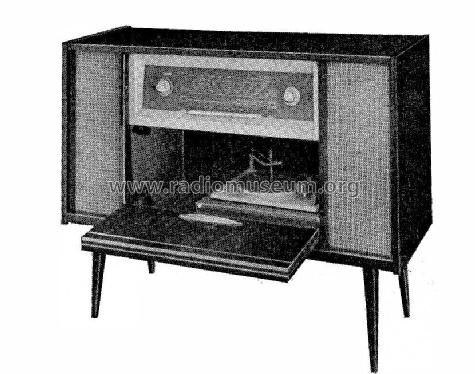

• Model: Balalaika Stereo 30 S 22455 - Schaub und Schaub-Lorenz

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 970 x 780 x 380 mm / 38.2 x 30.7 x 15 inch

• Notes
• Dioden: 2xOA79, Gleichr.: Selen B250C75

• Net weight (2.2 lb = 1 kg)
• 31.5 kg / 69 lb 6.1 oz (69.383 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
