• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22330

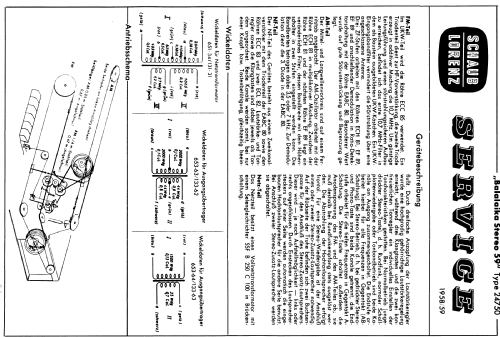

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EABC80 ECC83 ECL82 ECL82 EM84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

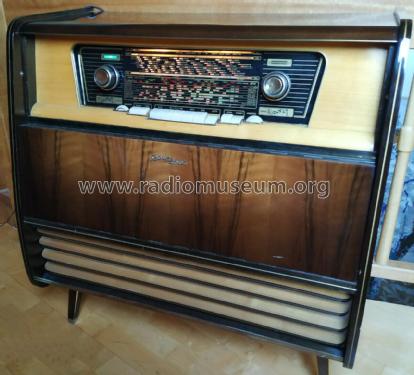

• Model: Balalaika Stereo 59 24750 - Schaub und Schaub-Lorenz

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 775 x 820 x 410 mm / 30.5 x 32.3 x 16.1 inch

• Notes

• Plattenwechsler: Perpetuum Ebner Rex A Stereo.

• Net weight (2.2 lb = 1 kg)
• 34 kg / 74 lb 14.2 oz (74.89 lb)

• Price in first year of sale
• 698.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
