• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24573

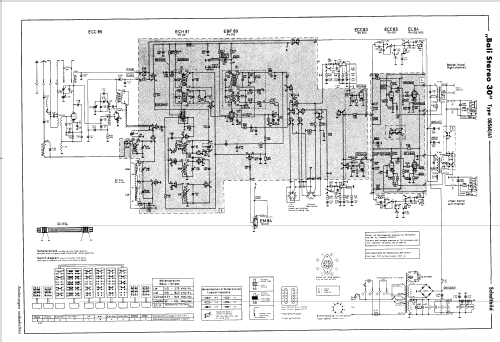

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bali Stereo 30 [poliert] - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 780 x 910 x 385 mm / 30.7 x 35.8 x 15.2 inch

• Notes
• Rundfunk-Chassis = 93041;
  Phono-Chassis = Perpetuum-Ebner PE66.
  Als Stereo-Zusatz-Lautsprecher werden Schaub-Lorenz Modelle empfohlen:
  1. Stereovox T als Tischlautsprecher
  2. Stereovox S als Standlautsprecher.

• Net weight (2.2 lb = 1 kg)
• 36.5 kg / 80 lb 6.3 oz (80.396 lb)

• Price in first year of sale
• 848.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
