• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23620

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 EF83 EF83 ECL82 ECL82 ECL82 ECL82

• Number of Transistors

• Semiconductors
• OA79 OA79

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ballerina Konzert Stereo 10 45150 [poliert] - Schaub und Schaub-Lorenz

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1180 x 815 x 380 mm / 46.5 x 32.1 x 15 inch

• Notes

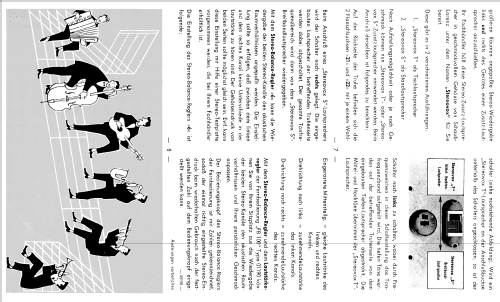

• Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 10 W.
  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 835.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1961/62

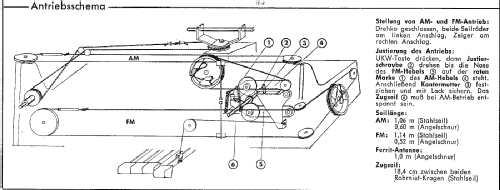

• Literature/Schematics (1)
• -- Original-techn. papers.
