• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1932 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6161

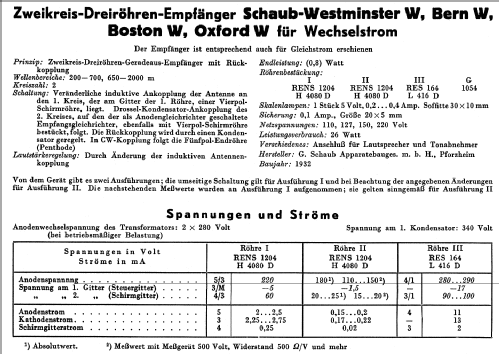

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1204 RENS1204 RES164 RGN1054

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s); Anode bend detection

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Bern II W - Schaub und Schaub-Lorenz

• Notes
• Ch=Boston II W etc.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Other Models

• Here you find 972 models, 830 with images and 690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Schaub und Schaub-Lorenz
