• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6257

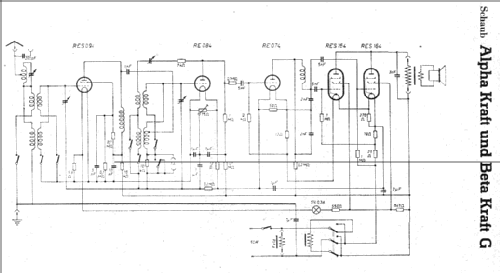

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• RES094s RE084s RE074s RES164s RES164s

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Beta-Kraft G [alt ] - Schaub und Schaub-Lorenz

• Dimensions (WHD)
• 445 x 235 x 310 mm / 17.5 x 9.3 x 12.2 inch

• Price in first year of sale
• 274.00 RM !

• Source of data
• Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk
