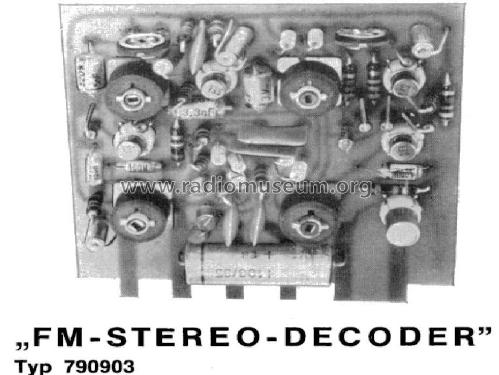

FM-Stereo-Decoder 790903
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1966/1967
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 92787

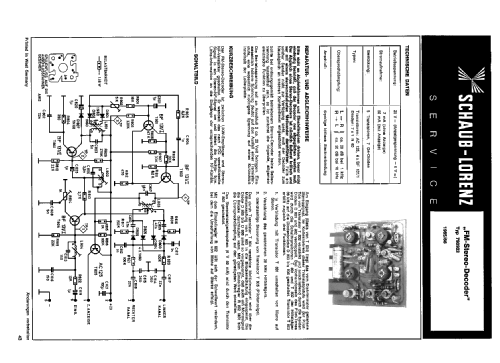

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- RF Converter/Adapter (not voltage converter)
- Power type and voltage
- Powered by external power supply or a main unit. / 20 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-Stereo-Decoder 790903 - Schaub und Schaub-Lorenz
- Shape
- Chassis only or for «building in»
- Mentioned in
- -- Original-techn. papers. (Schaub-Lorenz Service Rundfunkgeräte 1966/67)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
