• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 282588

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF93 EABC80 EM85 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

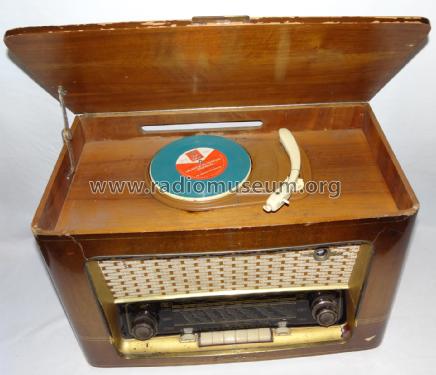

• Model: Goldsuper-Phono T57 7441 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 390 x 320 mm / 22.8 x 15.4 x 12.6 inch

• Notes

• Erweiterter LW-Bereich für Drahtfunkempfang; drehbare Ferritantenne.

  Phono-Laufwerk 3420 PE

  Im Handbuch des Rundfunk- und Fernseh-Grosshandels mit 11 UKW-Kreisen gelistet, das Schema zeigt dagegen 9 FM-Kreise.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 449.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Gruschka. See "Data change" for further contributors.
