Goldsuper Stereo 30F 22015
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 358622
- Number of Tubes
- 6
- Number of Transistors
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 8.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

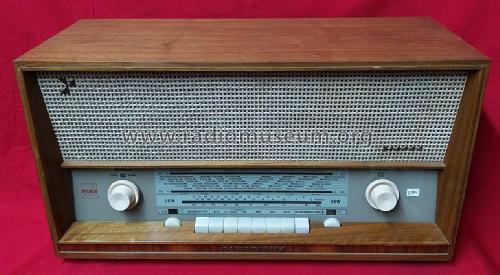

- Model: Goldsuper Stereo 30F 22015 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 620 x 345 x 235 mm / 24.4 x 13.6 x 9.3 inch
- Notes
-
Schaub Lorenz Goldsuper Stereo 30F Typ 22015 ist ein Exportmodell, wohl für die Schweiz. Im Unterschied zu den Typen 22010, 22012 und 22013 ist eine drehbare Ferritantenne eingebaut.
2 Eintakt-Endstufen je 3,5 W bei Stereo-Betrieb oder eine 8,5-W-Gegentakt-Endstufe bei Mono-Betrieb.
Siehe auch Goldsuper Stereo 30 in den Ausführungen
- Net weight (2.2 lb = 1 kg)
- 10.4 kg / 22 lb 14.5 oz (22.907 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
