Goldsuper W25 hell

Schaub und Schaub-Lorenz

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 19606

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 155; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 5.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Goldsuper W25 [hell] - Schaub und Schaub-Lorenz
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 550 x 340 x 240 mm / 21.7 x 13.4 x 9.4 inch
  • Notes
  • Eingangsbandfilter für UKW, Ferritantenne für MW/LW, schaltbare AM-Bandbreite.

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Price in first year of sale
  • 276.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • Rundfunk-Phono-Fernseh-Katalog 1954/55 S.60 (Thiele)
  • Literature/Schematics (1)

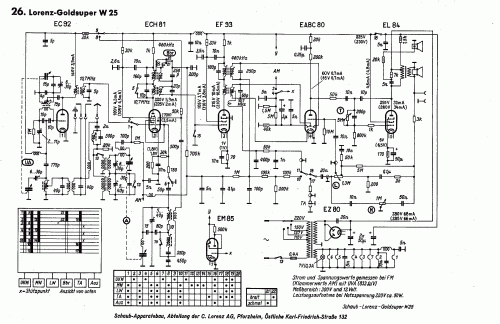

  • -- Schematic (Funkschau-Schaltungssammlung)
