Goldsuper W52 4058

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1956–1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6029

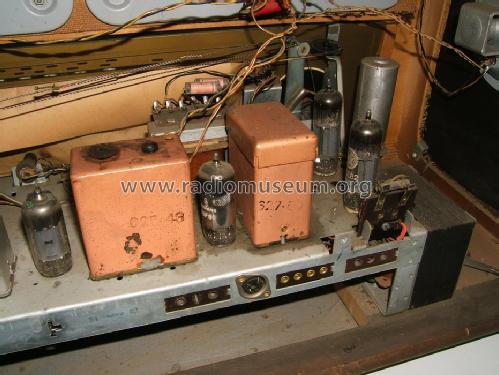

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM85 EABC80 ECL82 ECL82

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Goldsuper W52 4058 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 400 x 270 mm / 26.8 x 15.7 x 10.6 inch

• Notes
• Bandbreite schaltbar; drehbare Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 475.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
