• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26519

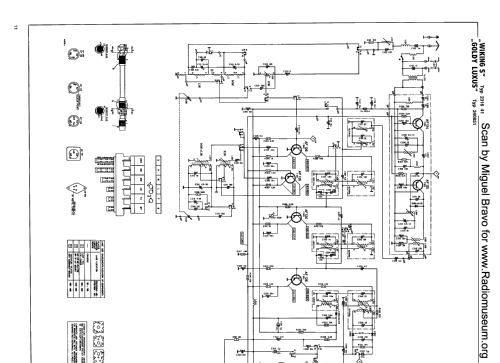

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF134 AF125 AF126 AF126 AF126 AF126 AC122 AC122 AC122 AC117 AD150

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

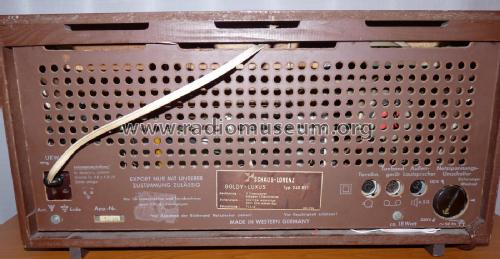

• Model: Goldy Luxus 240851 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 248 x 165 mm / 19.7 x 9.8 x 6.5 inch

• Notes
• Technische Daten wie "Wiking S", jedoch anderes Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 239.00 DM

• External source of data
• erb

• Mentioned in
• Taxliste Franzis Verlag

• Literature/Schematics (1)
• Handbuch VDRG 1966/1967 (und 1967/68)

• Literature/Schematics (2)
• Schaub_Lorenz Service Rundfunkgeräte 1966/1967
