• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1964 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 282599

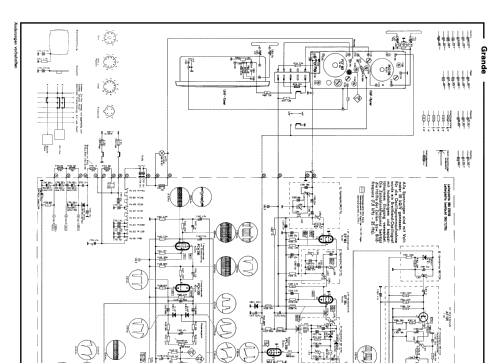

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PCC189 PCF801 EF183 EF184 PFL200 PCL86 PCH200 PCF802 PL500 PY88 DY86 PCL85 27AFP4

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF126 OA160 OA160 OA161 OA161 OA161 E80C3 E80C3 AA119 AA119 BY250

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Grande 43124 Ch= 6031 - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 837 x 572 x 493 mm / 33 x 22.5 x 19.4 inch

• Notes

• VHF/UHF. Konzertlautsprecher 130 x 260 mm, Hochtonlautsprecher 90 x 150 mm.
  Abmessungen ohne Beine. Holzgehäuse in hell oder dunkel lieferbar.

• Net weight (2.2 lb = 1 kg)
• 49 kg / 107 lb 14.9 oz (107.93 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
