Grande (6069) 43124
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1965/1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111852

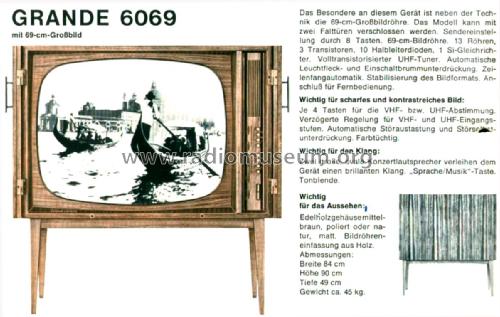

Q: Schaub-Lorenz, Produkt-Katalog '65
Q: Schaub-Lorenz, Produkt-Katalog '65
- Number of Tubes
- 13
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Grande 43124 - Schaub und Schaub-Lorenz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 840 x 900 x 490 mm / 33.1 x 35.4 x 19.3 inch
- Notes
-
VHF/UHF. Konzertlautsprecher 130 x 260 mm, Hochtonlautsprecher 90 x 150 mm.
Entspricht Grande 69. Im VDRG-Handbuch 1965/66 als Grande 6069 bezeichnet, während die Original-Dokumente nur Grande ohne Ziffernzusatz kennen.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
