Illustra 2059 73452/73453/73454/73455
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 105584

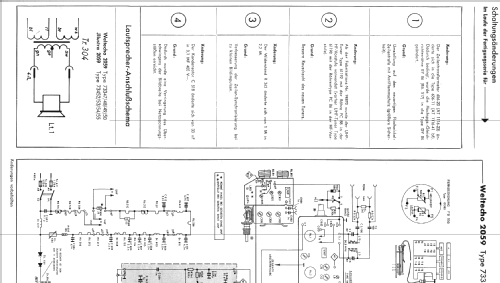

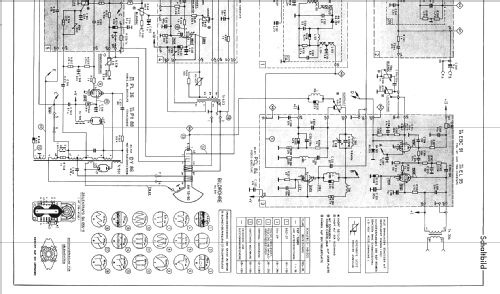

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustra 2059 73452/73453/73454/73455 - Schaub und Schaub-Lorenz
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 720 x 945 x 420 mm / 28.3 x 37.2 x 16.5 inch
- Notes
- Technische Daten wie Weltecho 2059, jedoch Standgerät.
- Net weight (2.2 lb = 1 kg)
- 43 kg / 94 lb 11.4 oz (94.714 lb)
- Price in first year of sale
- 1,148.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
