Illustra 4059 Multinorm 80645
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1964 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 327279
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC88 PCF82 PC88 PC86 EF183 EF183 EF80 PCL84 ECH84 EAA91 ECH84 PCL85 PL500 PY88 DY86 EF80 PCL82 A59-12W
- Number of Transistors
- 10
- Semiconductors
- AF124 AF124 AF124 AC125 AC125 AF126 AF126 AC128 AC125 AC128 BA111 BY242 M3 OA79 OA81 OA90
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustra 4059 Multinorm 80645 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Schaub-Lorenz, Illustra 4059 Multinorm

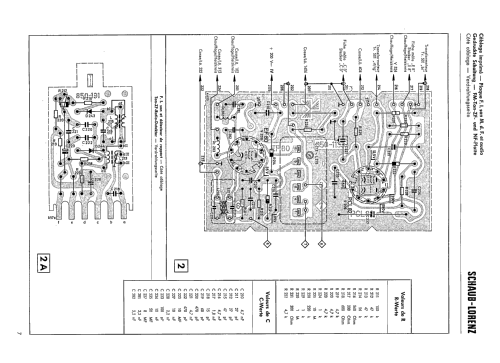

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
