• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111848

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PC900 PCF801 EF183 EF184 PFL200 PCH200 PCF802 PL500 PY88 DY86 PCL85 PCL86 A59-12W

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF126 AA119 BY250 OA70 OA81 E80C3

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Illustramat 6059 43054 Ch= 6030 - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 780 x 840 x 430 mm / 30.7 x 33.1 x 16.9 inch

• Notes

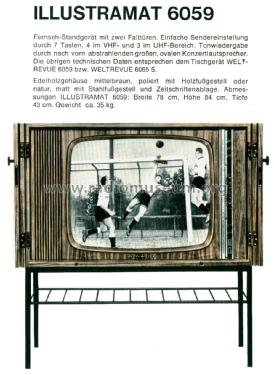

• Schaub-Lorenz, Illustramat 6059 Typ 43054

  VHF/UHF

  Die kabelgebundene Fernbedienung typ 94400 enthält vier Einstellregler für Lautstärke, Helligkeit, Ton (Ein / Aus) und Bildkontrast.

  Standgerät mit verschließbaren Falttüren.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
