Illustramat 6065S 43214 Ch= 6030
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1965/1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111849
Q: Schaub-Lorenz, Produkt-Katalog '65
Q: Schaub-Lorenz, Produkt-Katalog '65

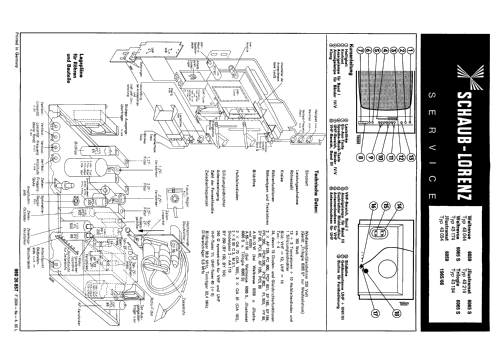

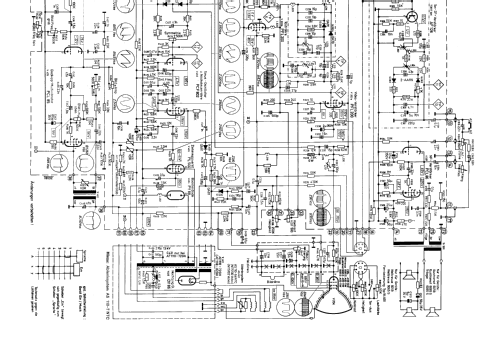

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 3
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustramat 6065S 43214 Ch= 6030 - Schaub und Schaub-Lorenz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 850 x 840 x 460 mm / 33.5 x 33.1 x 18.1 inch
- Notes
-
Schaub-Lorenz, Illustramat 6065S Typ 43214
VHF/UHF 65-cm-Bildröhre.
Die kabelgebundene Fernbedienung typ 94400 enthält vier Einstellregler für Lautstärke, Helligkeit, Ton (Ein / Aus) und Bildkontrast.
Standgerät mit verschließbaren Falttüren
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
