• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1955 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 327314

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCC85 EF94 EF94 EF94 EF80 PL83 EF94 EF94 ECH81 EF94 EF93 PL82 ECC81 ECC81 PL82 ECC81 PL81 PY83 EY51 MW53-20

• Main principle
• Superhet with RF-stage; ZF/IF 25700 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Illustraphon 21-4N 8386 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Notes

• Schaub-Lorenz, Illustraphon 21-4 N Type 8386 (Multinorm)

  Kanalwähler für VHF Band I und III

  Die kabelgebundene Fernbedienung Typ 0015 enthält die Bedienelemente zum Einstellen der Lautstärke und des Bildkontrasts.

  AW53-20 (non-existent CRT) appears erroneously in the diagram while it appears as MW53-20 in the technical information

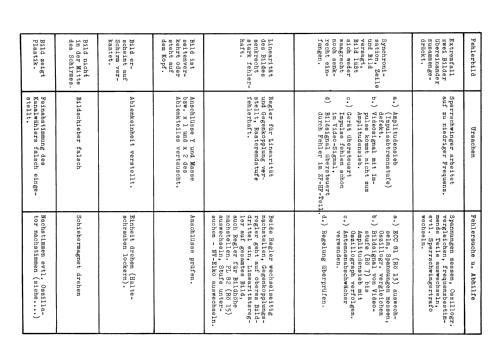

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
