Illustraphon 3059D 76442/76443
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1962/1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 107616
Q: Schaub-Lorenz, Service-Unterlagen
Q: Schaub-Lorenz, Service-Unterlagen

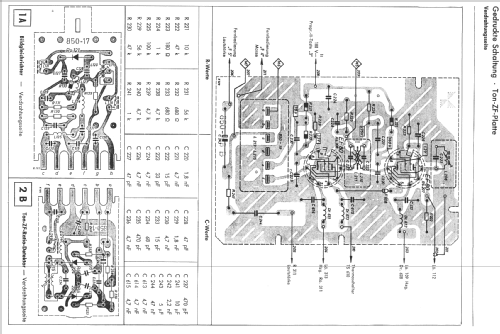

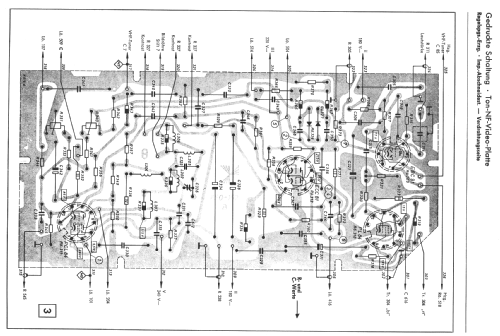

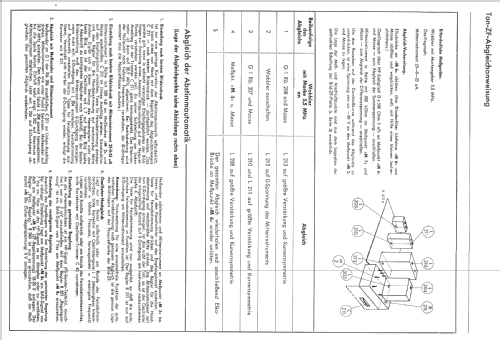

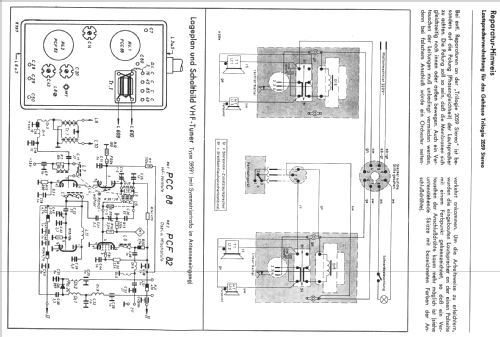

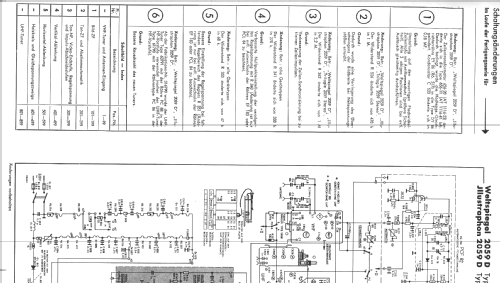

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 3059D 76442/76443 - Schaub und Schaub-Lorenz
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 650 x 920 x 420 mm / 25.6 x 36.2 x 16.5 inch
- Notes
- VHF/UHF.
- Net weight (2.2 lb = 1 kg)
- 52 kg / 114 lb 8.6 oz (114.537 lb)
- Price in first year of sale
- 1,398.00 DM
- Source of data
- Handbuch VDRG 1962/1963
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
