Illustraphon 5059S
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1964/1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 110156

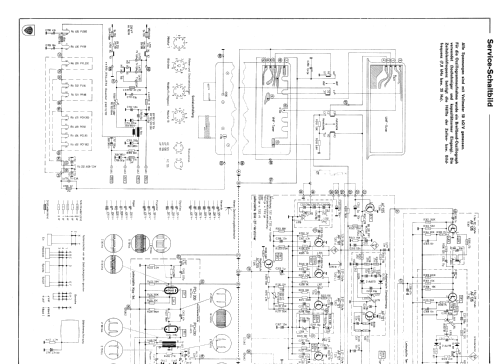

Bild aus Servicedoku.

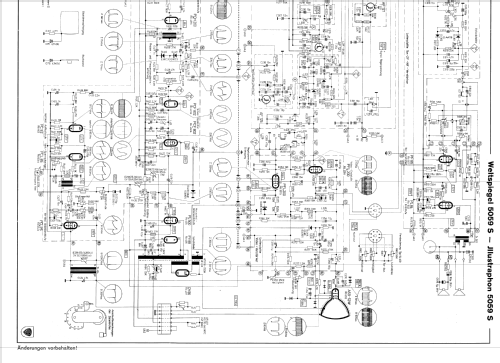

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 5059S - Schaub und Schaub-Lorenz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 730 x 885 x 375 mm / 28.7 x 34.8 x 14.8 inch
- Notes
- VHF/UHF. Technische Daten wie Weltspiegel 5059S, jedoch Standgerät mit abschließbaren Falttüren.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Price in first year of sale
- 1,748.00 DM
- Source of data
- Handbuch VDRG 1964/1965
