Illustraphon 553 8088
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1955–1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 20403
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 EF80 PL83 EH90 ECC81 PCL82 ECC81 PL36 PY83 EY86 EF94 EF94 PABC80 PL82 MW53-80
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

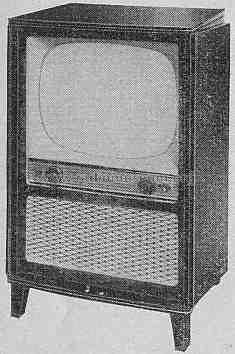

- Model: Illustraphon 553 8088 - Schaub und Schaub-Lorenz
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 620 x 1000 x 525 mm / 24.4 x 39.4 x 20.7 inch
- Notes
-
Schaub-Lorenz, Illustraphon 553 Type 8088
Kanalwähler für VHF Band I und III
Die kabelgebundene Fernbedienung Typ 0049 enthält die Bedienelemente zum Einstellen der Lautstärke und des Bildkontrasts.
12 VHF-Kanäle. Lorenz-Ablenksystem mit Ring- und Pantoffelspulen. Statische Fokussierung.
- Net weight (2.2 lb = 1 kg)
- 50 kg / 110 lb 2.1 oz (110.132 lb)
- Price in first year of sale
- 1,198.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
- Mentioned in
- Katalog Nr.444 (1956/57)
- Literature/Schematics (1)
- -- Schematic
