Illustraphon 560 8090
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1956/1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 20898

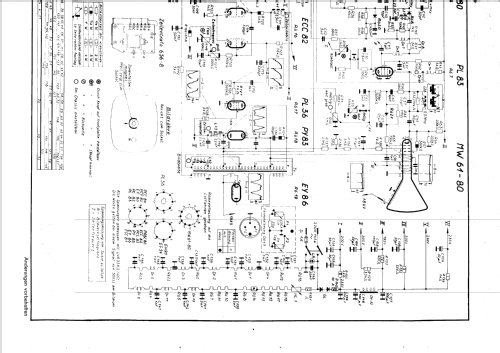

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 EF80 PL83 EH90 ECC81 PCL82 ECC81 PL36 PY83 EY86 EF94 EF94 PABC80 PL82 MW61-80
- Main principle
- Superheterodyne (common); ZF/IF 3900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 560 8090 - Schaub und Schaub-Lorenz
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 760 x 1100 x 564 mm / 29.9 x 43.3 x 22.2 inch
- Notes
- VHF-Band I & III.
- Net weight (2.2 lb = 1 kg)
- 74.4 kg / 163 lb 14 oz (163.877 lb)
- Price in first year of sale
- 1,648.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
