Illustraphon 861 Luxus 52740
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 100904
Schaub-Lorenz Prospekt 1958

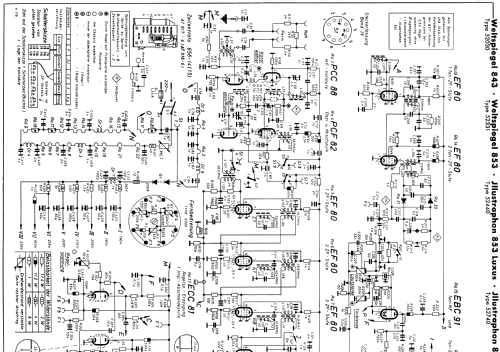

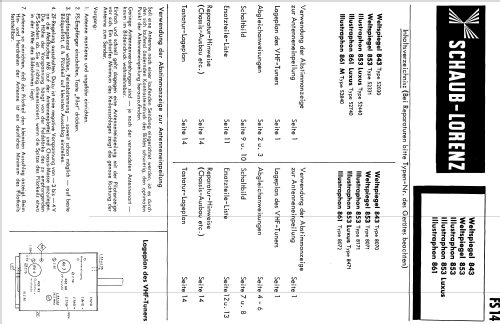

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 861 Luxus 52740 - Schaub und Schaub-Lorenz
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 710 x 1020 x 565 mm / 28 x 40.2 x 22.2 inch
- Notes
- Technische Daten wie Weltspiegel 853, jedoch mit 61-cm-Bildröhre im Standgehäuse. VHF 10 Kanäle + 2 Reserve, UHF vorbereitet. Röhren teilweise mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 77 kg / 169 lb 9.7 oz (169.604 lb)
- Price in first year of sale
- 1,598.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
