• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101663

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• AW53-88

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

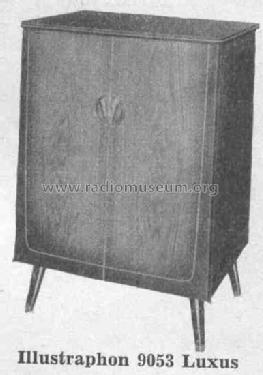

• Model: Illustraphon 9053 Luxus 54541A / 54540 - Schaub und Schaub-Lorenz

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 630 x 960 x 455 mm / 24.8 x 37.8 x 17.9 inch

• Notes

• Nur VHF.

• Price in first year of sale
• 1,268.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
