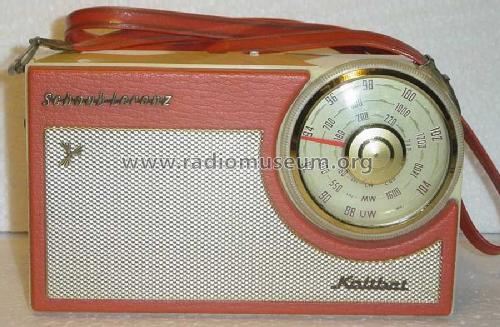

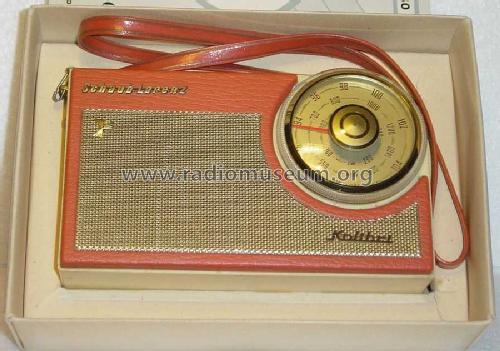

Kolibri T30 Type 42080/81/82

Schaub und Schaub-Lorenz

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 5996

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / AA: 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Kolibri T30 Type 42080/81/82 - Schaub und Schaub-Lorenz
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 158 x 93 x 43 mm / 6.2 x 3.7 x 1.7 inch
  • Notes
  • Ferritantenne für MW/LW, Wurfantenne für UKW, zugleich Tragriemen.

  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Price in first year of sale
  • 198.00 DM
  • Mentioned in
  • Funk-Technik (FT) (3/1962, S. 74 - 76 / Ausführliche Beschreibung, Schema)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Literature/Schematics (2)
  • Handbuch RFP 1962/63 S.259
