• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1950 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 76005

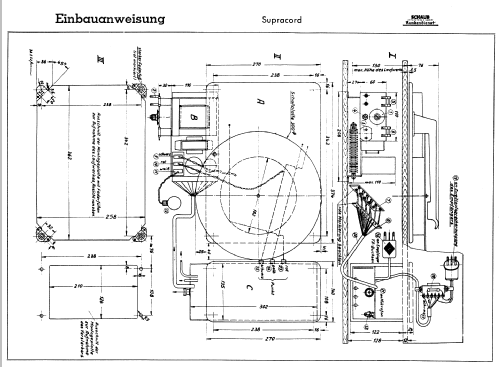

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF12K EBF15 EL11 EM71

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 155, 220, 240 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Konsolette - Schaub und Schaub-Lorenz

• Dimensions (WHD)
• 700 x 790 x 450 mm / 27.6 x 31.1 x 17.7 inch

• Notes
• Tondraht-Gerät mit Plattenspieler nur 78 Upm.

• Net weight (2.2 lb = 1 kg)
• 33.5 kg / 73 lb 12.6 oz (73.789 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.

• Other Models

• Here you find 972 models, 830 with images and 690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Schaub und Schaub-Lorenz
