Konsulette 100

ITT Schaub-Lorenz

  • Year
  • 1970–1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27930

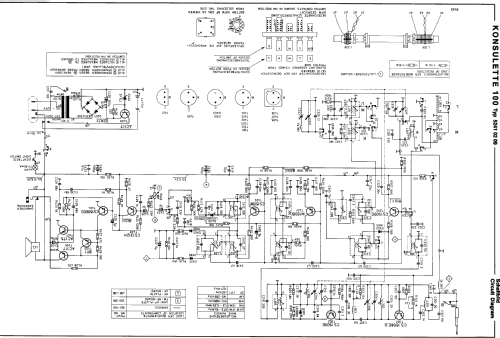

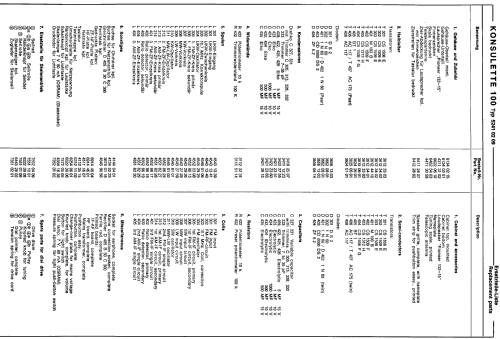

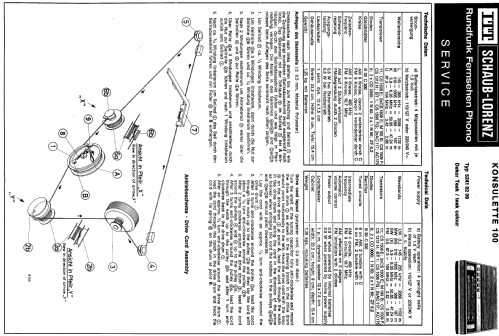

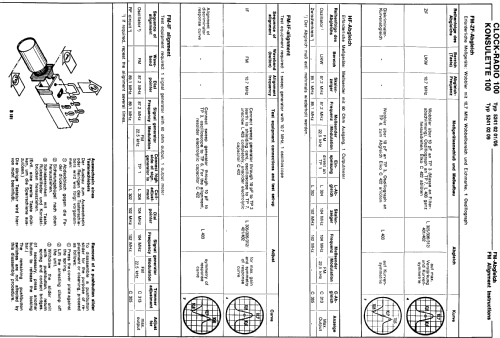

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110-127, 220-240 / 4x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Konsulette 100 - ITT Schaub-Lorenz
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 230 x 90 x 155 mm / 9.1 x 3.5 x 6.1 inch
  • Notes
  • KW nur 49-m-Band.
    Gehäuse: Teak-Dekor oder Nussbaum-Dekor.
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • External source of data
  • Erb
