Oceanic 55 4272

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19388

• Picture
• Schematics

Previous Next

Previous Next

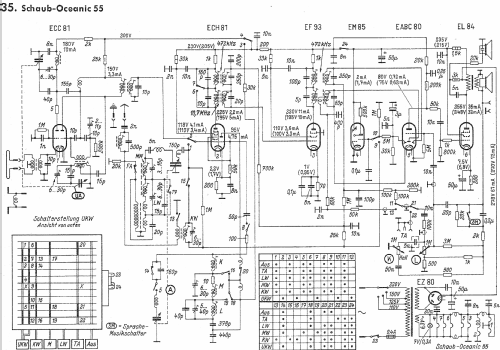

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 ECH81 EF93 EABC80 EM85 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Oceanic 55 4272 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 375 x 232 mm / 22.4 x 14.8 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 335.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54
