• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6065

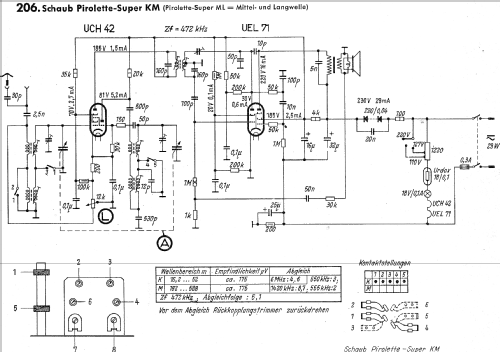

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCH42 UEL71

• Number of Transistors

• Semiconductors
• C220K40E

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; Super, reaction, but not adjustable

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pirolette- Super KM - Schaub und Schaub-Lorenz

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 267 x 190 x 125 mm / 10.5 x 7.5 x 4.9 inch

• Notes
• baugleich mit Lorenz Feldberg Super von 1951/52; Wellenbereiche auch MW/LW.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 142.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (5113)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
