• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5976

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Number of Transistors

• Semiconductors
• E15C250/E150C30

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands

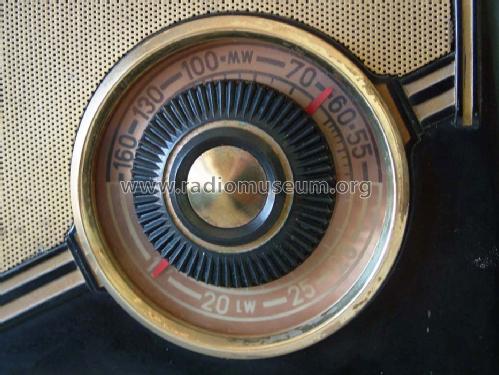

• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 110/220 / DEAC D2 & 75 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

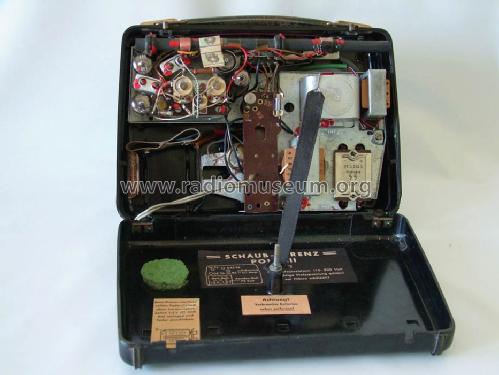

• Model: Polo III 9242 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 170 x 80 mm / 9.4 x 6.7 x 3.1 inch

• Notes

• Siehe auch Schaub-Lorenz Polo III Type 9042.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Price in first year of sale
• 173.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
