• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5954

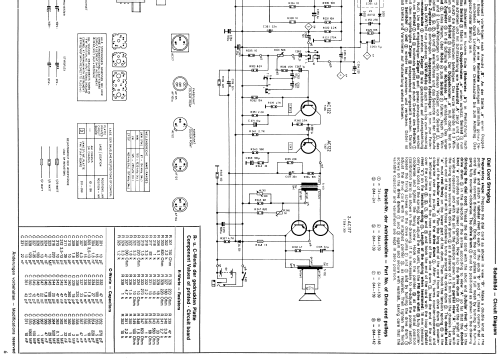

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF134 AF125 AF105 AF105 AF105 AC122 AC122 AC117 AC117 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Polo T60L 13014175 / 13014375 / 13014975 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 170 x 80 mm / 11 x 6.7 x 3.1 inch

• Notes

• Netzbetrieb mit zusätzlichem Netzteil möglich.

  Farben: Typ 13014175 weinrot / 13014375 polargrau / 13014975 anthrazit.

  Siehe auch Pizon Bros. Translitor 1150FM

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Price in first year of sale
• 3,995.00 BFr

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
