• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6216

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• RENS1204 REN904 RENS1214 RENS1204 RES374 RGN1054

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; Reaction

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

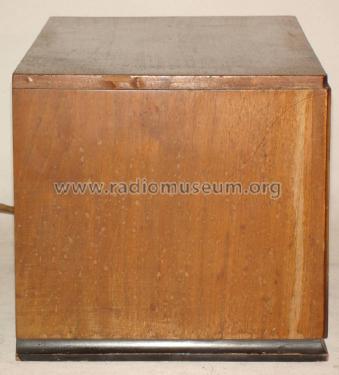

• Model: Super Brabant W [alt] - Schaub und Schaub-Lorenz

• Dimensions (WHD)
• 387 x 240 x 255 mm / 15.2 x 9.4 x 10 inch

• Notes
• AVC

• Net weight (2.2 lb = 1 kg)
• 12.6 kg / 27 lb 12.1 oz (27.753 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
