Super KW40

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6111

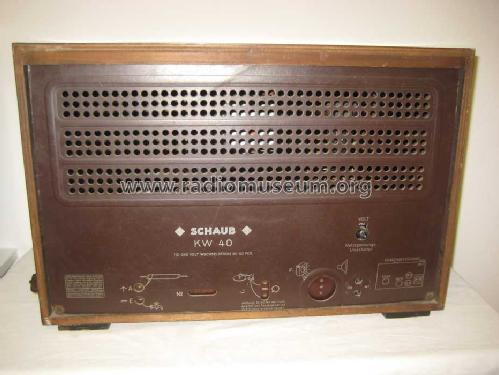

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF11 EL11 EM11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 490 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 155, 220, 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super KW40 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 383 x 320 mm / 22.4 x 15.1 x 12.6 inch

• Notes
• var.BBr.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Price in first year of sale
• 255.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
