• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75527

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF125 AF136 AF126 AF126 AF137 AC122 AC122 AD155 AD155

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Touring 80 Universal 110167 [perlweiß] - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch

• Notes

• FM-ZF-Verstärker für HF-Stereo-Empfang ausgelegt.
  Stereo-Wiedergabe mit Touring-Stereo-Component.
  Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 6 W; Netzbetrieb mit zusätzlichem Netzteil oder aus Touring-Stereo-Component möglich.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Price in first year of sale
• 340.00 DM

• Source of data
• Handbuch VDRG 1967/1968

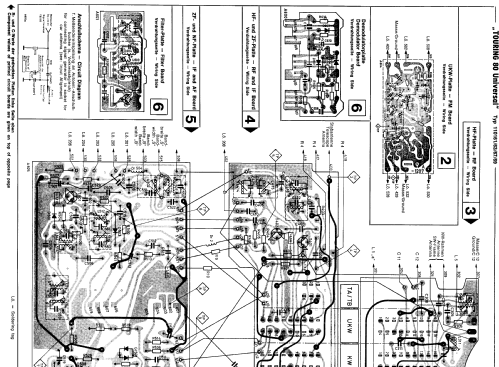

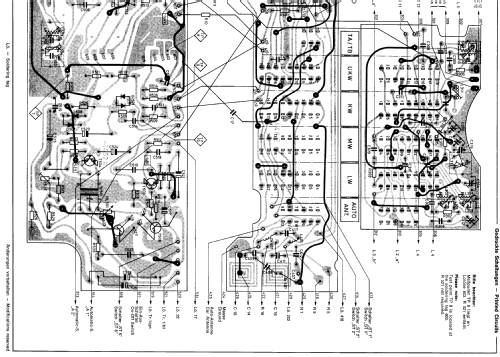

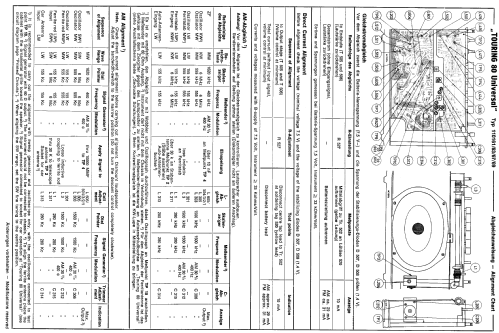

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
