• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115571

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF125 AF136 AF126 AF126 AF137 AC122 AC122 AD155 AD155

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

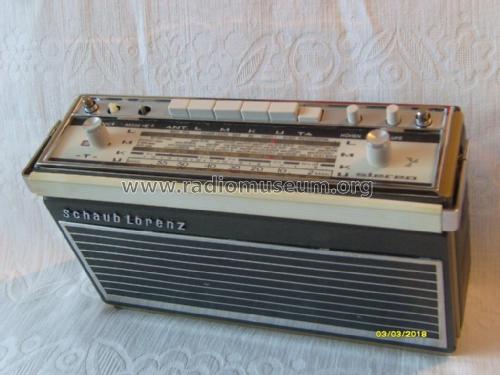

• Model: Touring Stereo 52150801 / 52150803 / 52150805 /52150807 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch

• Notes

• Kofferradio, zum Betrieb im Auto mit Autohalterung vorgesehen, spez. Anschlussbuchse am Geräteboden.
  Optional Netzanschlussgerät NG1000, NG2000 oder TOUROCLOCK.
  Optionaler Stereobetrieb mit dem TOURING-STEREO-COMPONENT (Stereo-Decoder und Verstärker für den linken Kanal).

  4 Ausführungen:
  52150801= Nussbaum
  52150803= anthrazit
  52150805= weinrot
  52150807= perlweiss

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
