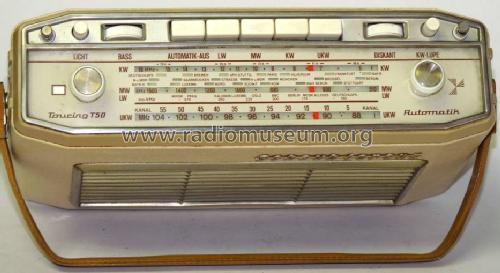

Touring T50 Automatik 101004 perlweiß-hellbraun
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175936
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 5 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Touring T50 Automatik 101004 [perlweiß-hellbraun] - Schaub und Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch
- Notes
-
Betrieb im Auto über Autohalterung (64,- DM) aus 6-V- oder 12-V-Autobatterie möglich, dann Ausgangsleistung 4 W.
Basisspannungs-Stabilisierung mit fest eingebauter DEAC-Zelle (NiCd-Element).
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
